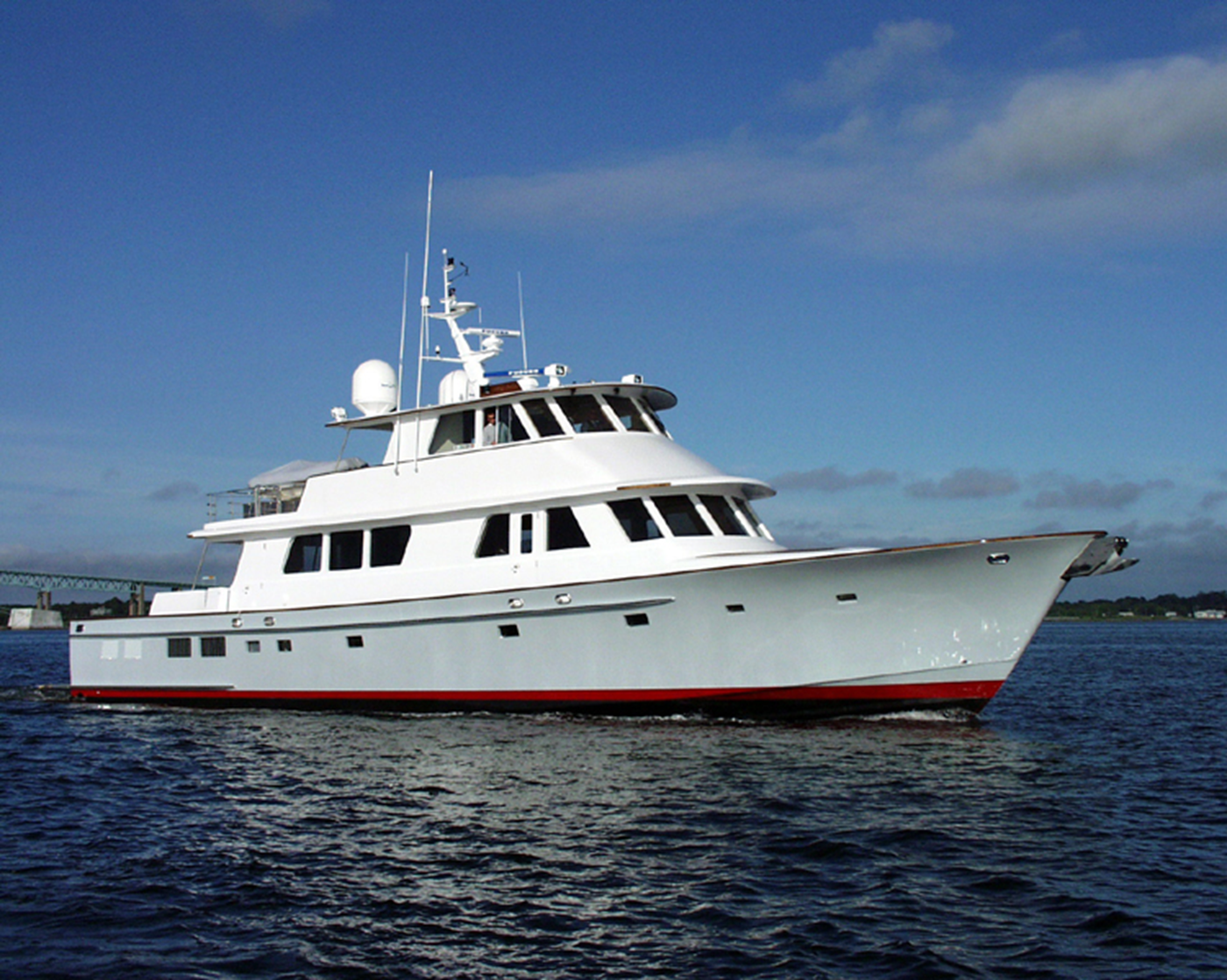

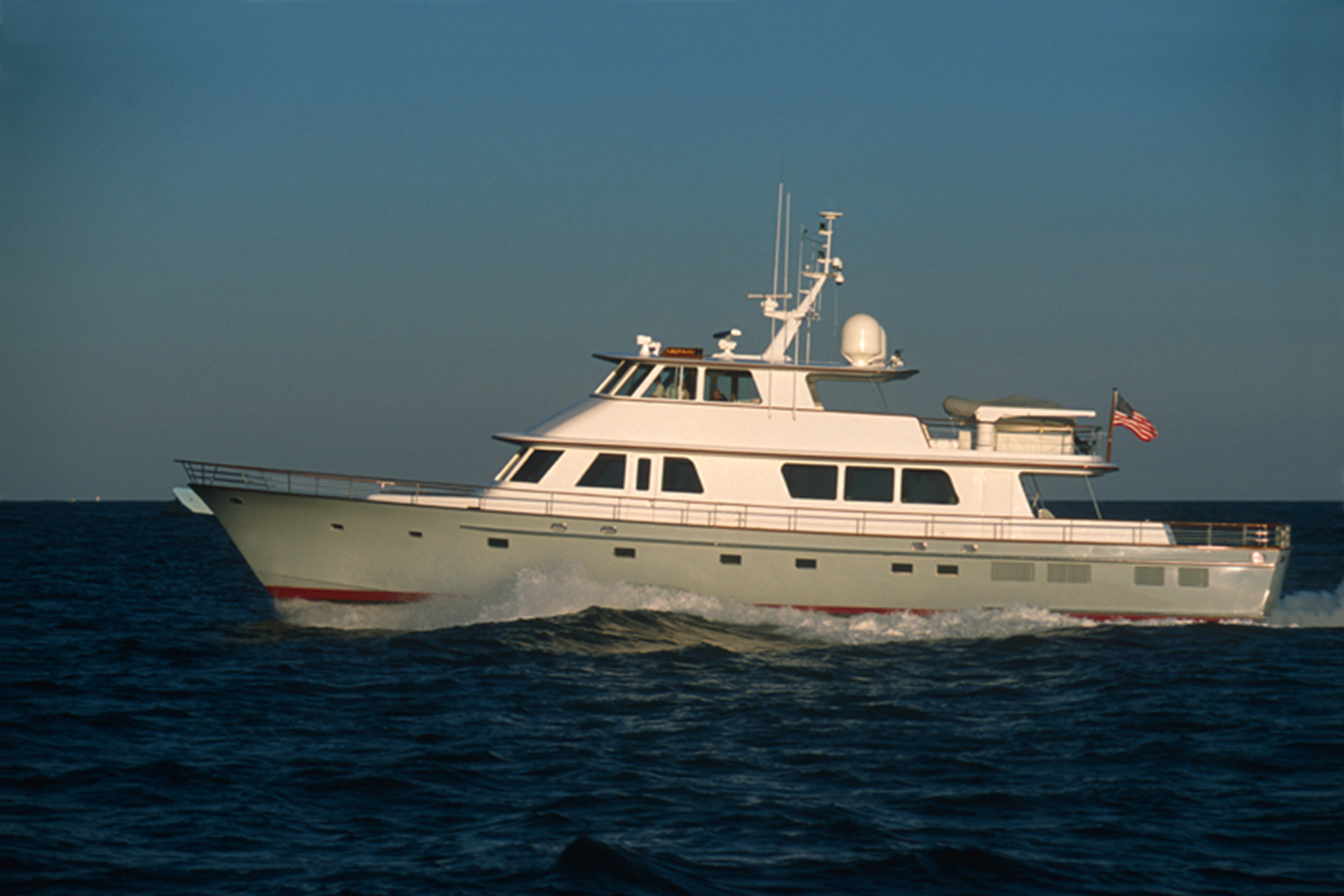

90' Motor Yacht
Beam: 20'-6"
Draft (Hull): 3'-11"
Displacement: 160,000 lbs
Power: Caterpillar Twin / 3412E DITTA
1400 BHP @ 2300 RPM
Speed: 23 kts Cruise / 28 kts Max
Fuel Capacity: 4,000 USG
Water Capacity: 950 USG
Construction: Cored FRP. Epoxy/E-glass skins, PVC foam cores, carbon reinforcing.
Builder: New England Boatworks
Portsmouth, Rhode Island

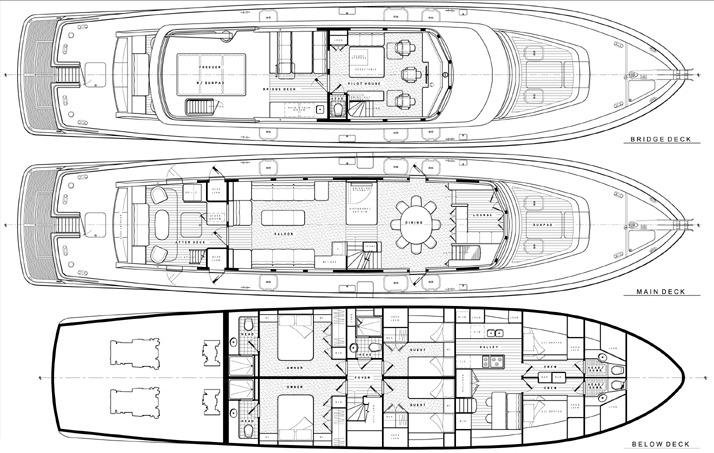

Profile & Arrangement
This 90-footer will be based in the Caribbean, where the owner will cruise with family and friends. An enclosed flying bridge forms both office and pilothouse, leaving the main deck level entirely free for a spacious and continuous living-dining area. Below decks are four staterooms accommodating an owner's party of eight, and forward is a large galley and quarters for up to four crew. Much emphasis has been placed on gear storage and freezer capacity, indicating the owner's intention to cruise widely in little-frequented areas. Cored composite construction provides both lightness and toughness, and aids performance. Her slim hull and Hunt deep-V bottom, levelled by "smart" trim-tabs, will provide comfortable running in the sometimes-boisterous waters of the Islands.
