42' Semi-Custom Cruiser
Beam: 13'-0"
Draft: 3'-0"
Displacement (full load): 26,500 lbs.
Power: (2) Cummins QSB6.7
Speed: 28 kts Cruise
Fuel Capacity: 450 USG
Metric HP: (2) 425
Builder: Lyman-Morse Boatbuilding
Profile & Arrangement
Video

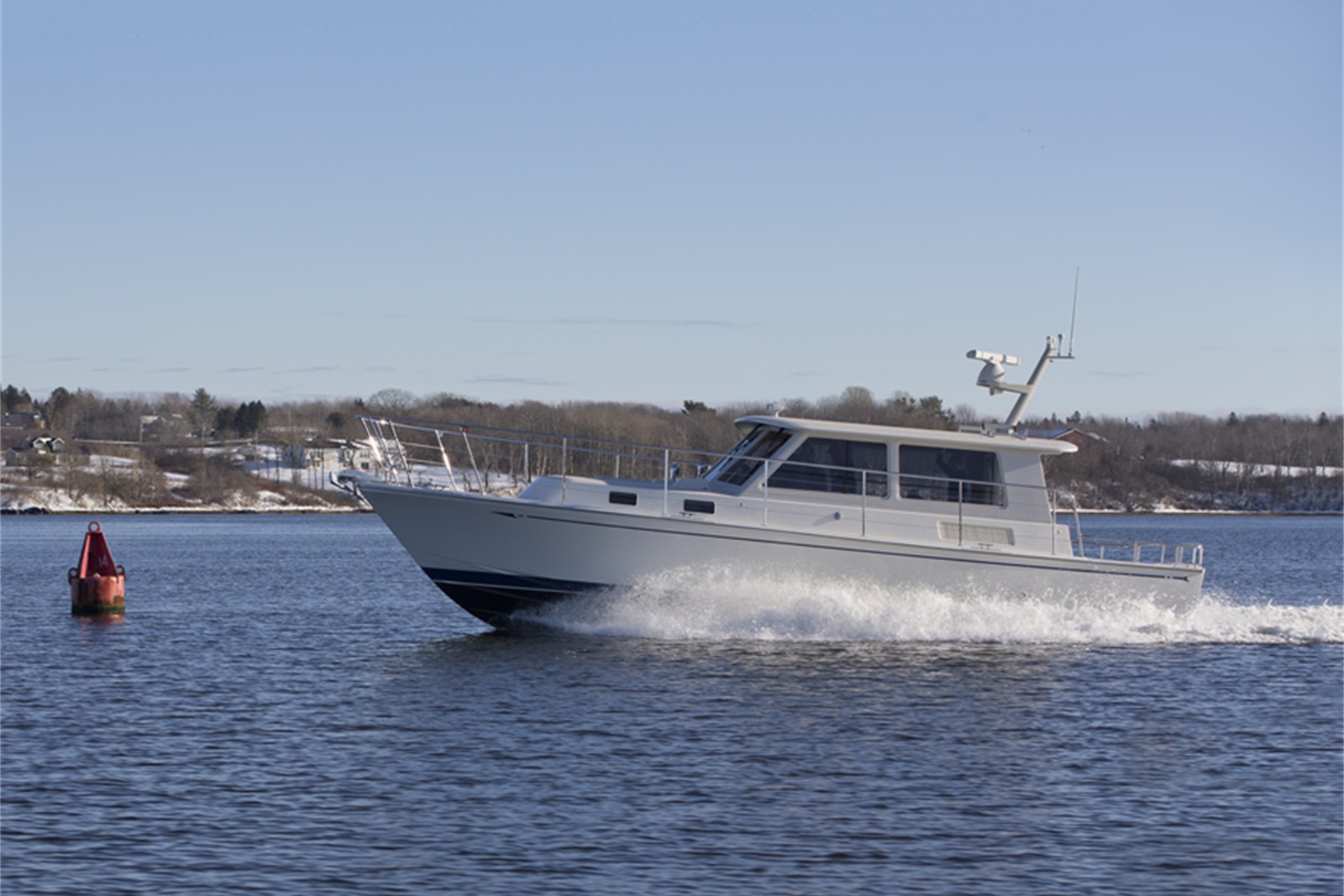

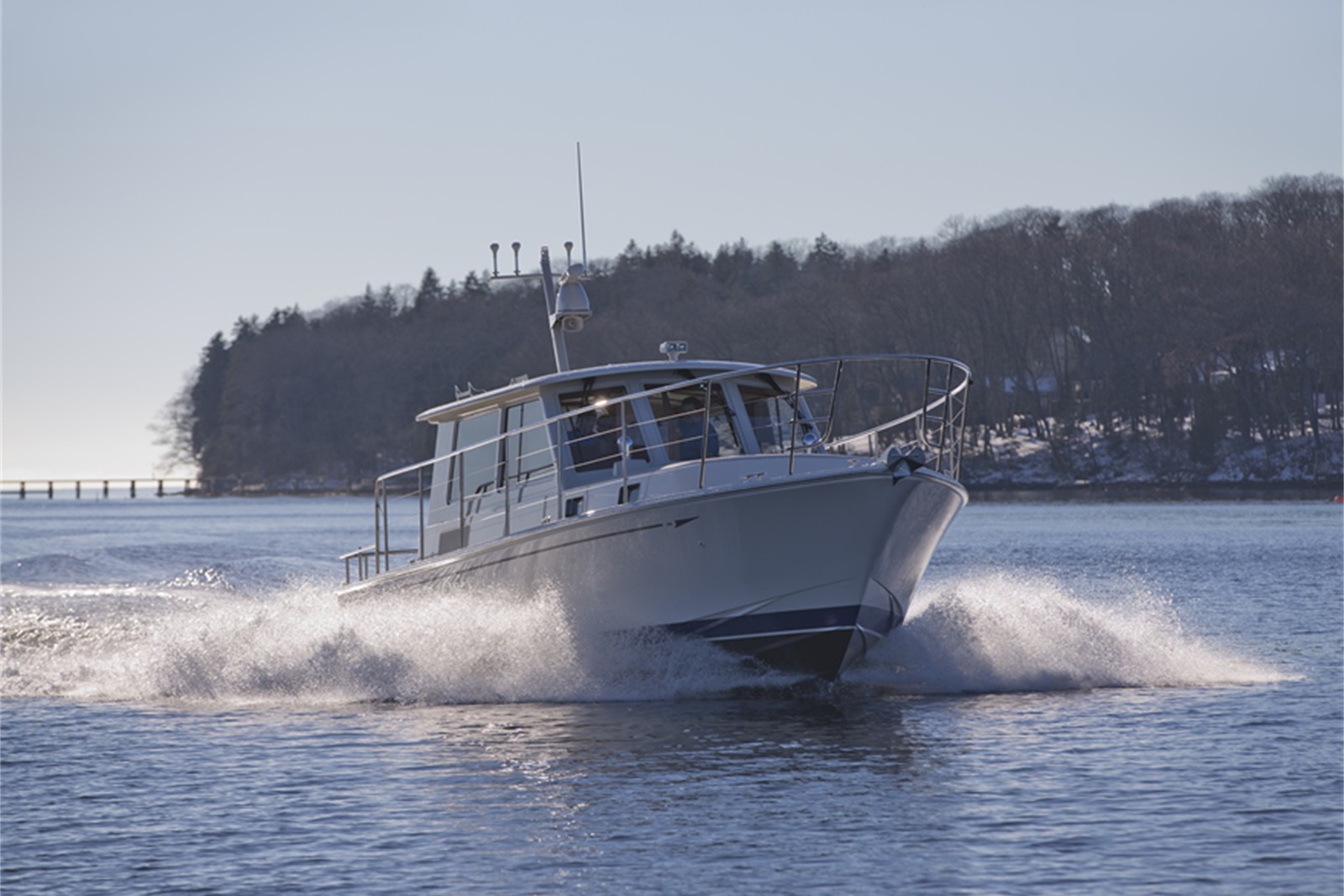

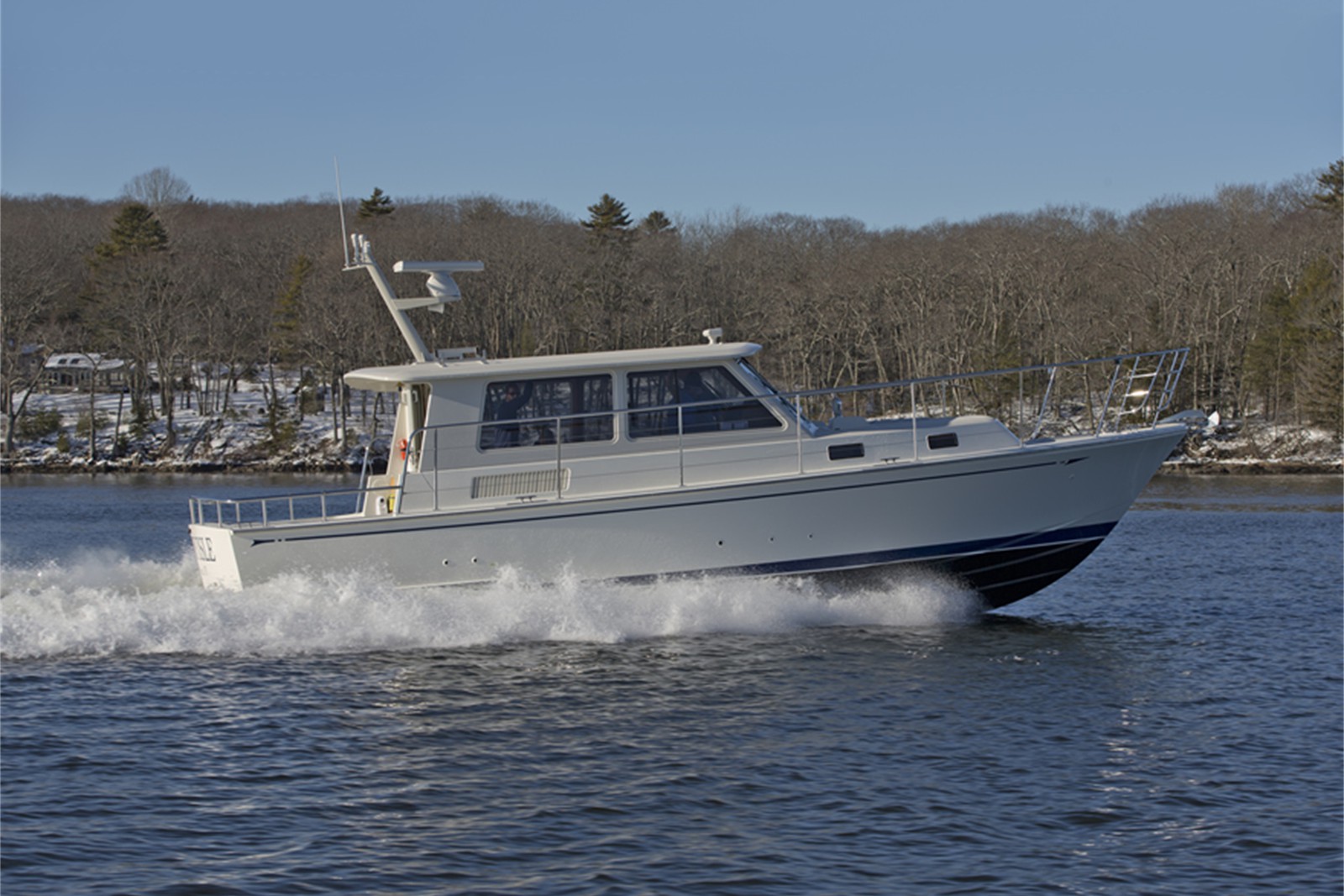

The long-running collaboration between Ray Hunt Design and Lyman-Morse continues with this 42-foot commuter yacht, intended to carry passengers to and from a corporate retreat island on Lake Ontario.
Seating is provided for twelve in the deckhouse, and up to eight more in the cockpit. Compared to a conventional cruising yacht, her arrangement is extremely simple, consisting of the afore-mentioned seating, and belowdecks, a small head and a cargo flat for passengers’ luggage.
Simplicity saves weight, leading to greater speed and efficiency, and twin 425-hp Cummins diesels give her a top speed of 32 knots. Propeller tunnels allow moderate draft and an efficient shaft angle, and bow and stern thrusters provide precise maneuverability in close quarters.
A full complement of drawings and calculations was submitted for U.S. Coast Guard approval.
This design will be available in four configurations - Flybridge, Cruiser, Extended Hardtop Cruiser, and Open - and with jet or traditional drives.
