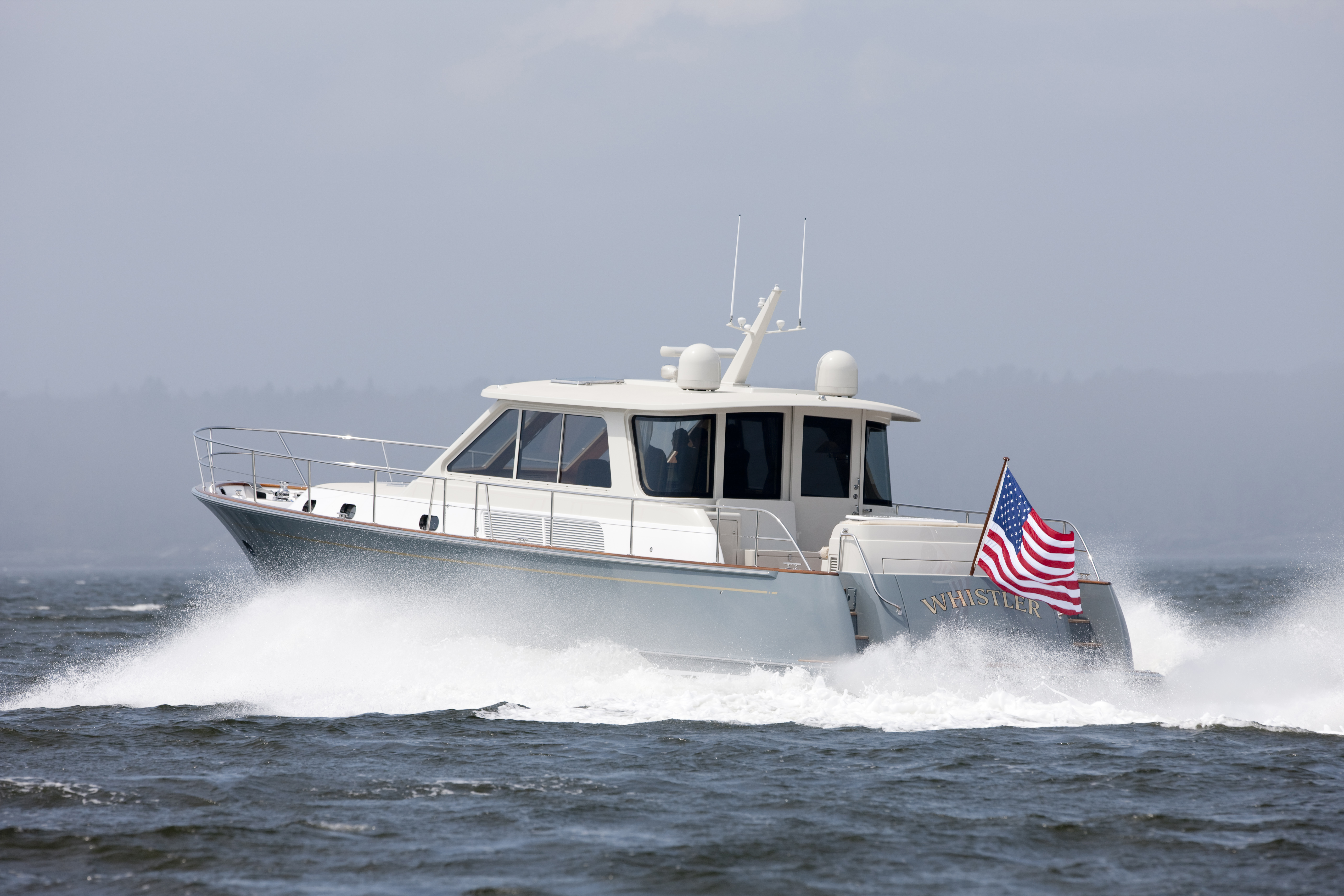

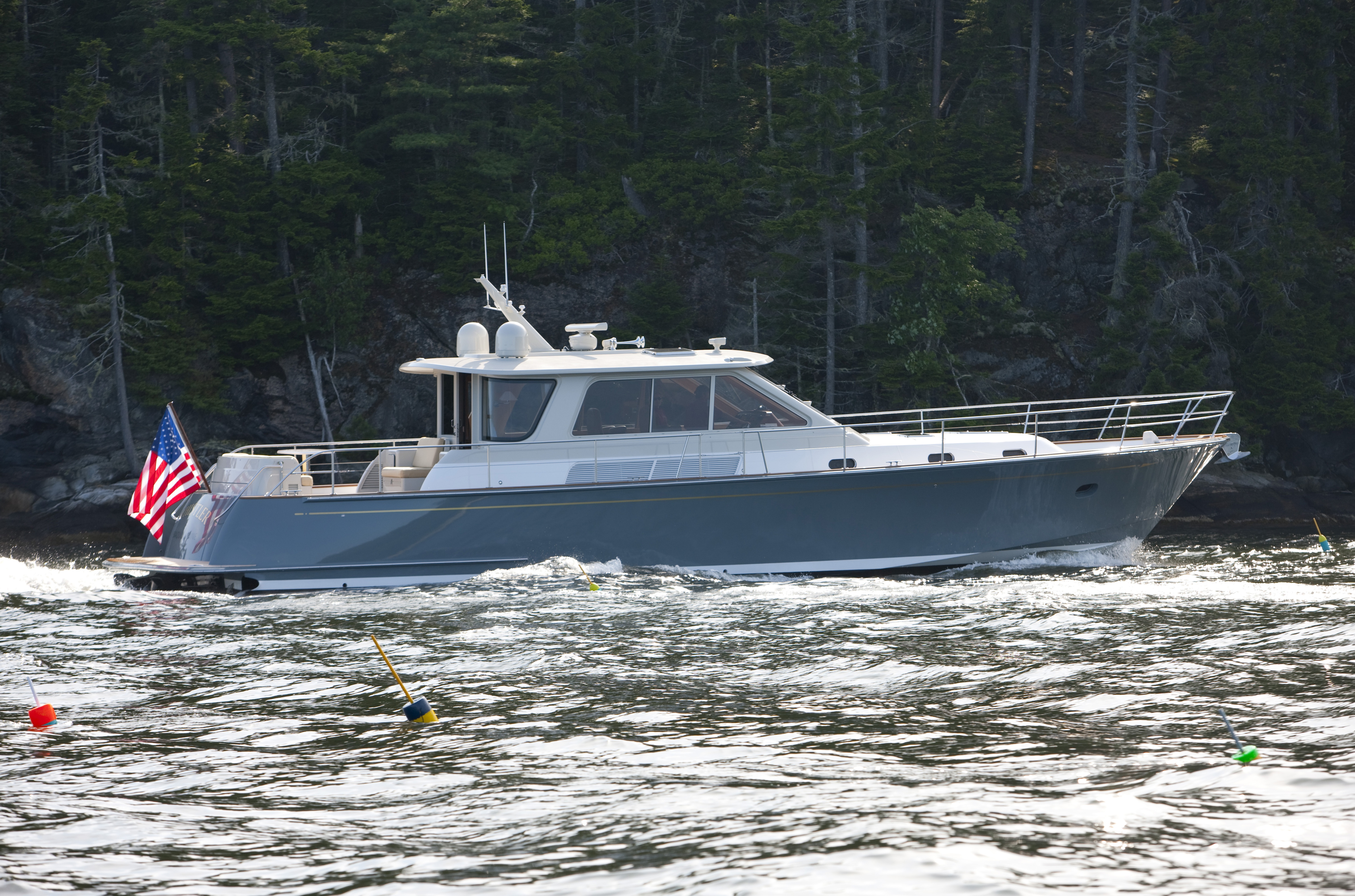

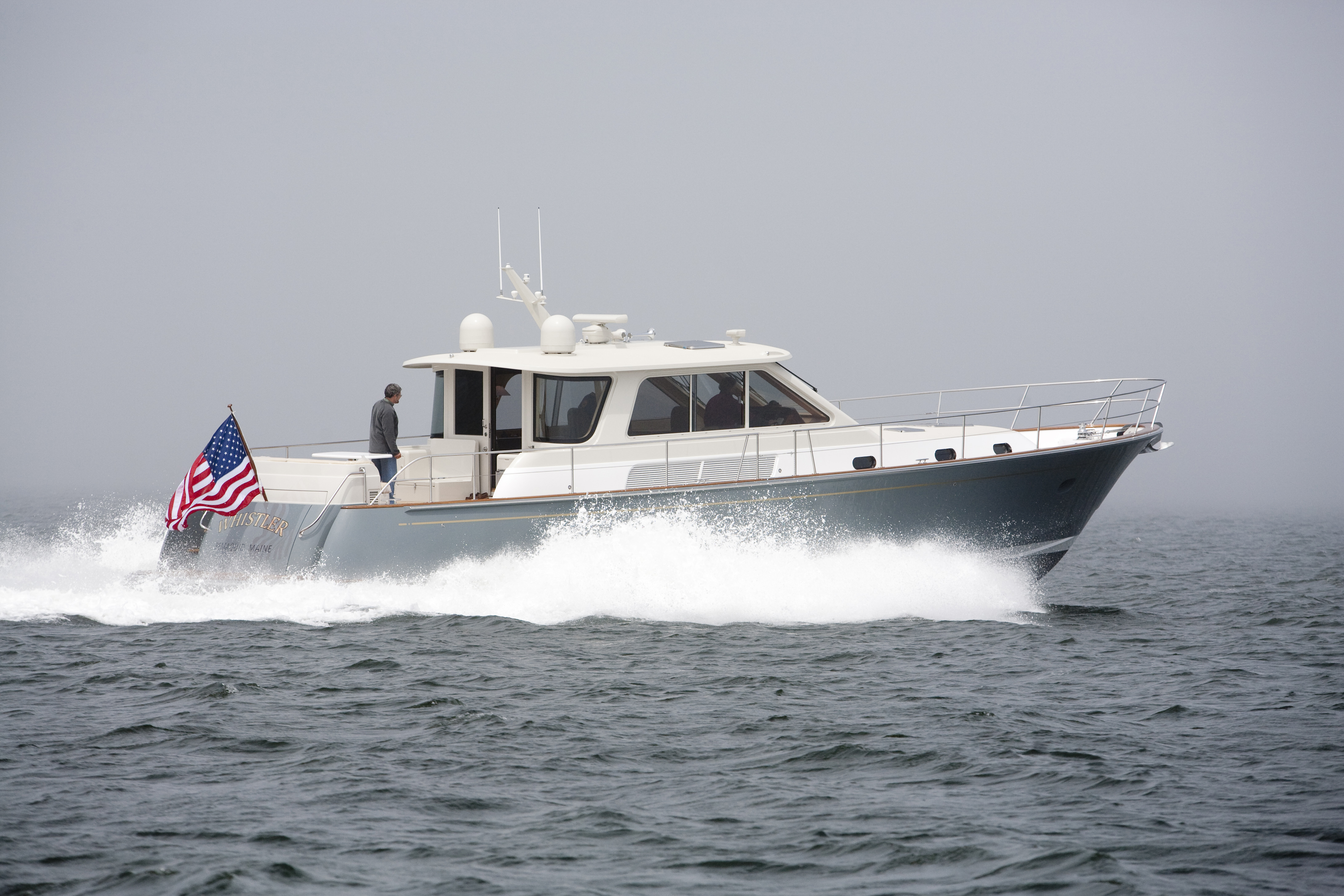

54' Waterjet Express
Beam: 15'-10"
Draft: 2'-11"
Displacement: 58,000 lbs
Power: 2 x Caterpillar C18 / 1001 BHP @ 2300 RPM / W/Hamilton HJ403 jets
Speed: 30 kts Cruise / 36 kts Max
Fuel Capacity: 800 USG
Water Capacity: 160 USG
Construction: Infused FRP composite
Builder: Lyman-Morse Boatbuilding
Profile & Arrangement
Press

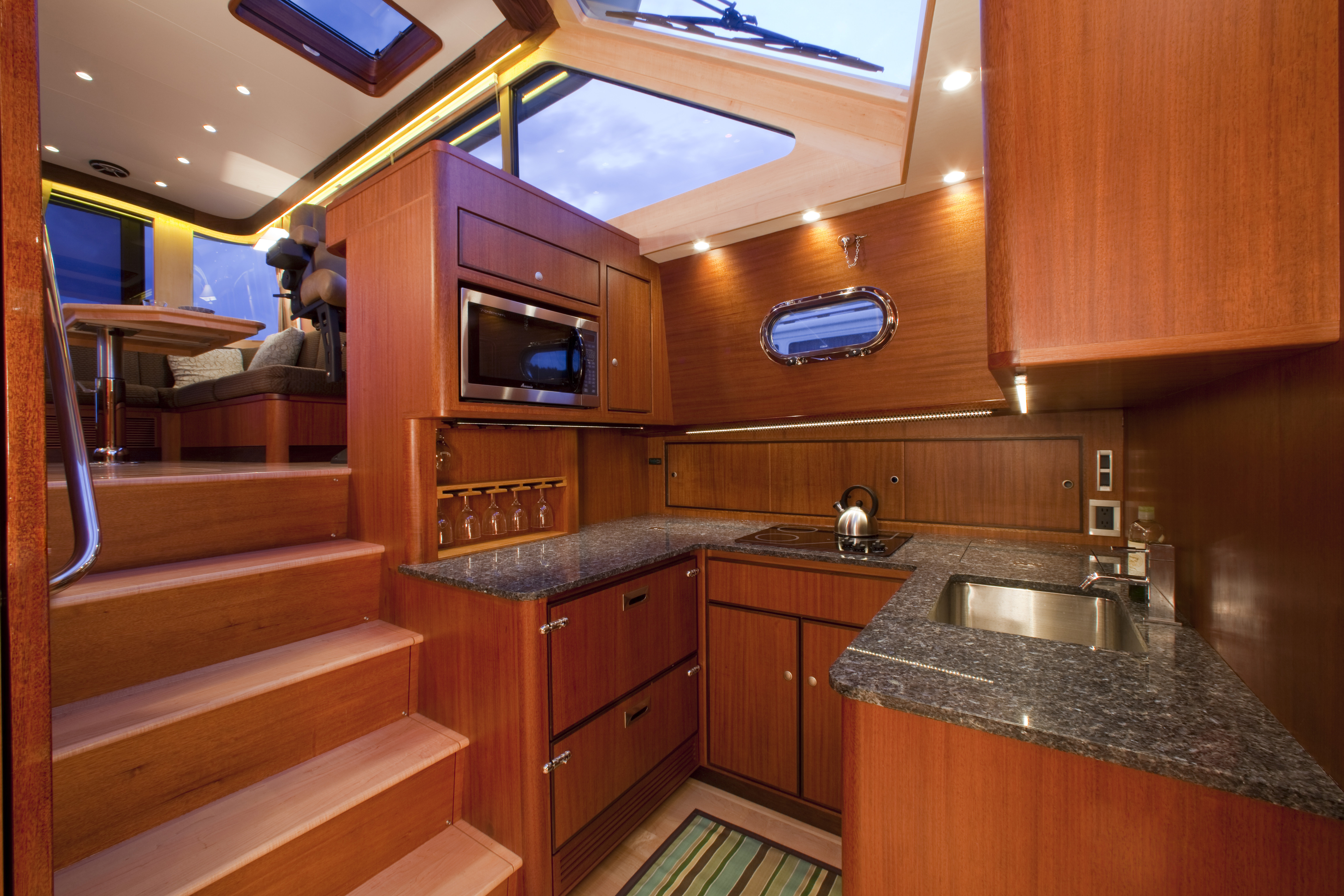

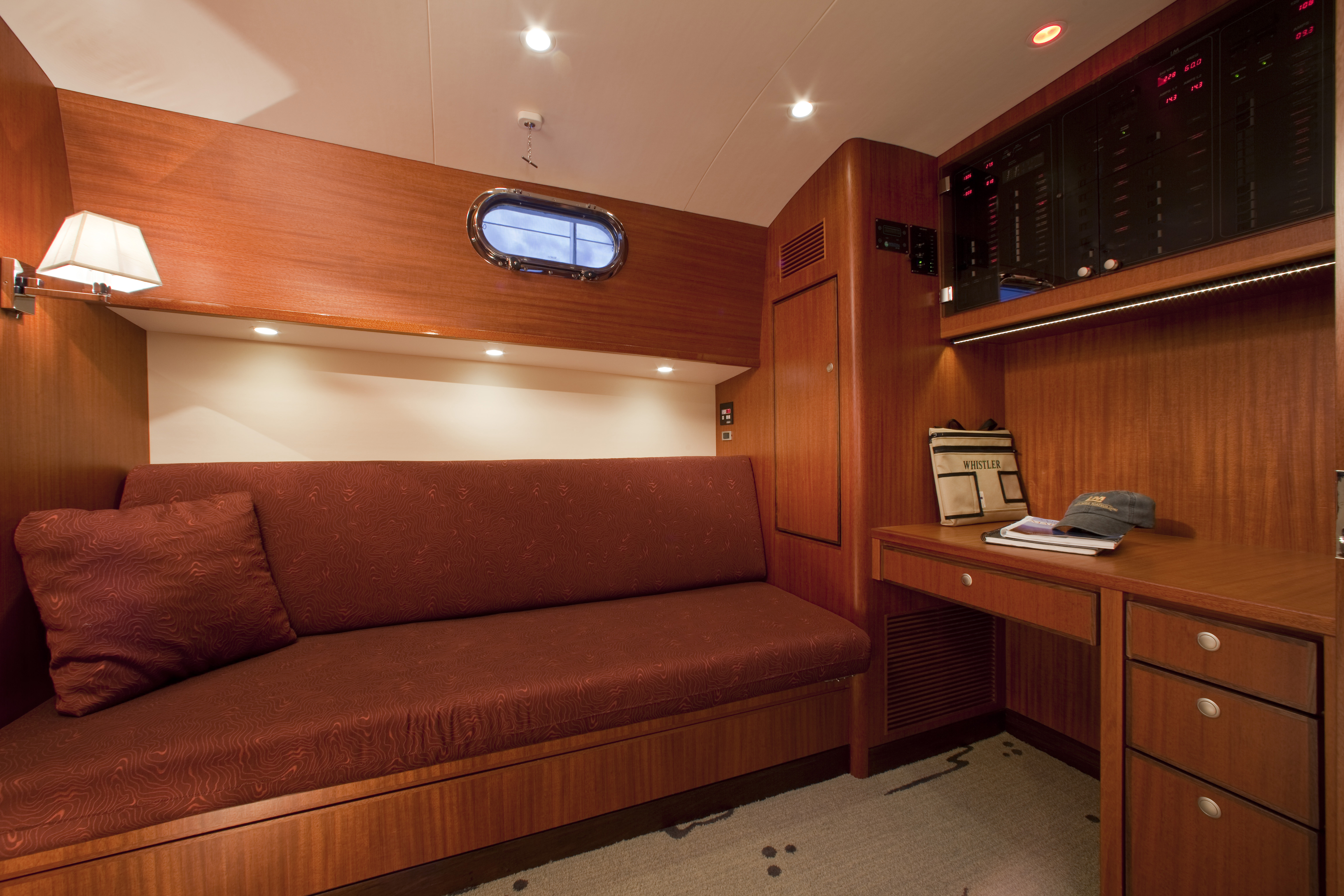

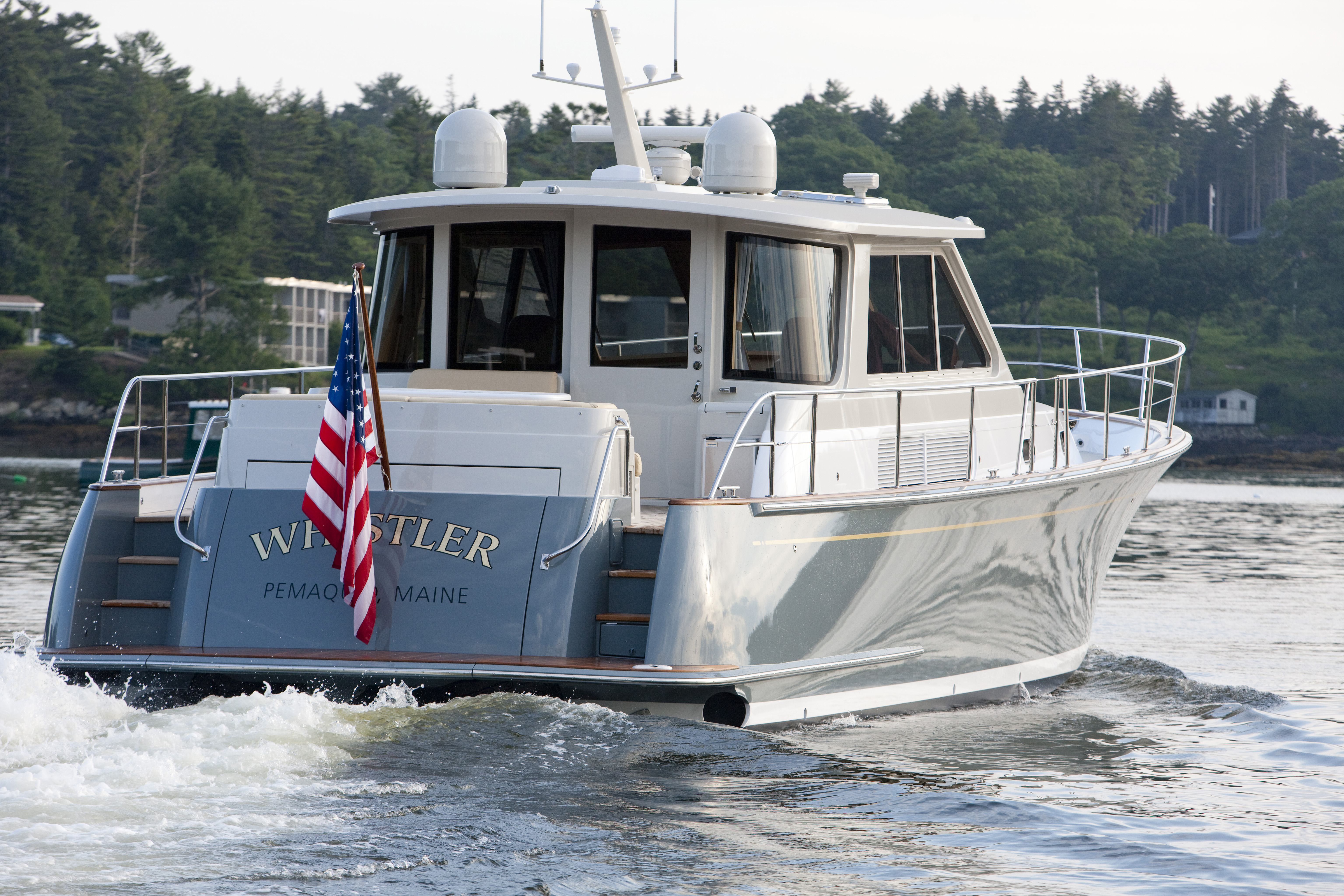

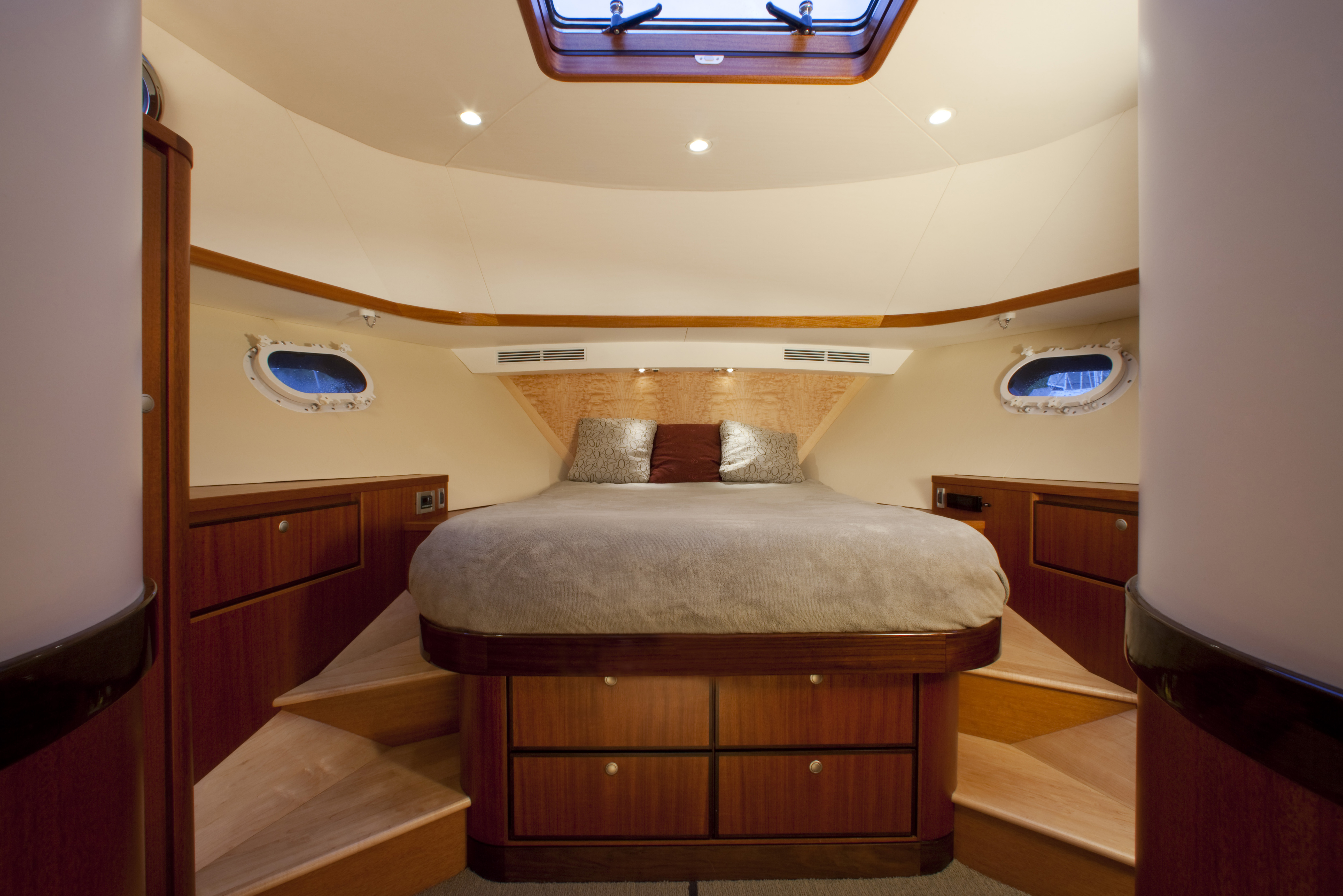

Twin Caterpillar C18s (1001 BHP) coupled with Hamilton HJ403 waterjets give a top speed of 36 knots and a cruising speed of 30 knots. Construction is infused FRP composite with CoreCell PVC foam core. Waterjet propulsion means that this vessel will have an operating draft of approximately three feet, or roughly one and one-half feet less than a propeller-driven yacht of comparable size and type. Accommodations include an owner's cabin with en-suite head and an office which converts to a guest cabin, also with its own head. The spacious, near-flush aft deck conceals a tender garage which accommodates an 11-foot RIB. See our study of a flybridge version of this 54' Waterjet Express.
This boat was selected as Southern Boating's Designer's Choice, June 2008.
