60' Flybridge Cruiser


  • Ray Hunt Design 60' Flybridge Cruiser
Length Overall: 60'-0"
Beam: 16'-9"
Draft (Hull): 4'-4"
Displacement: 70,000 lbs
Power: Twin Caterpillar / 3406B TA BHP / 540HP @ 2300 RPM
Speed: 20 kts Cruise / 23 kts Max
Fuel Capacity: 1,200 USG
Water Capacity: 480 USG
Construction:Cored FRP
Builder: Lyman-Morse Boatbuilding

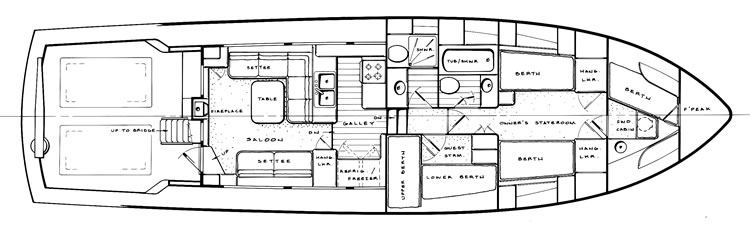

Profile & Arrangement

This handsome sixty-footer resulted from a long series of studies in which the owner and the Hunt office explored several design concepts in a range of sizes, finally settling on the well-proven Hunt 61 hull with a lowered sheerline. Two considerations drove the design: she was to be as low and svelte as possible, and she was to function not only as a day cruiser but also as a summer house, to be occupied for weeks at a time. To that end, she has a comfortable salon/galley with good views all around, a truly spacious master suite, and an airy hardtop-enclosed flybridge pilothouse. Conservative in her powering, she nevertheless reaches 23 knots, and will hold her cruising speed of 20 in almost any weather, thanks to the rough-water ability of the Hunt deep-V hull.
