70' Flybridge Express


  • Ray Hunt Design 70' Flybridge Express
Length Overall: 70'-0"
Beam: 19'-6"
Draft (Hull): 3'-6"
Displacement: 115,000 lbs
Power: (2) MTU 16V200 M91 / 2001 BHP @ 2350 RPM
Speed: 36 kts Cruise / 41 kts Max
Fuel Capacity: 1,500 USG
Water Capacity: 300 USG
Construction: PVC cored composite
Builder: Goetz Custom Technologies
Bristol, Rhode Island

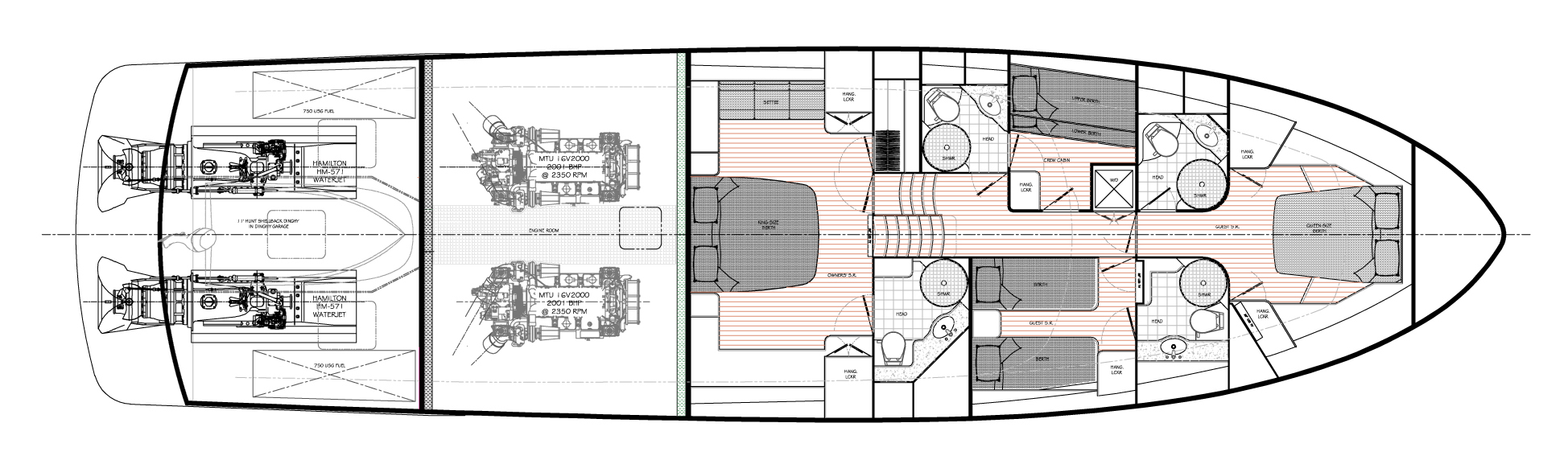

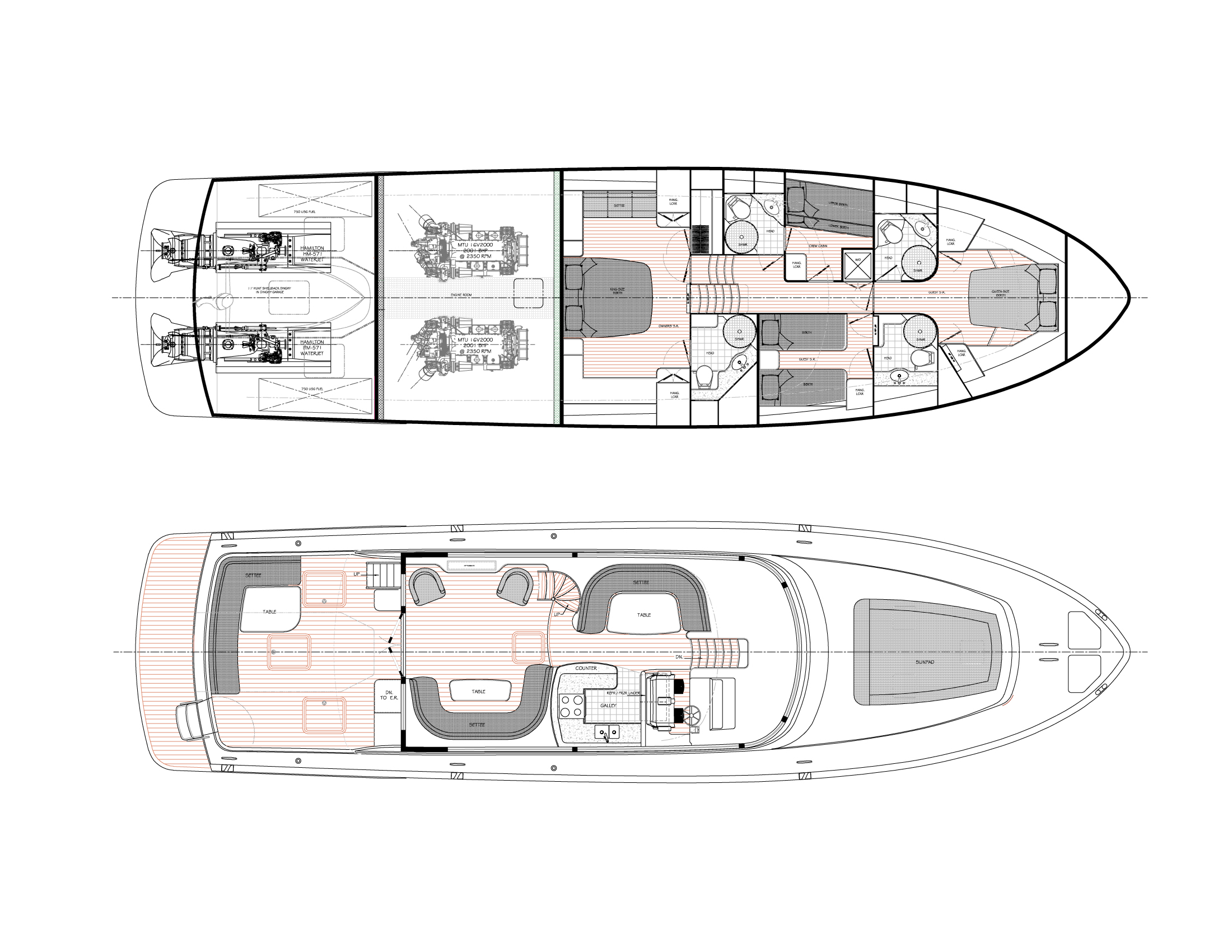

Profile & Arrangement

This 70' flybridge express is being developed in cooperation with Goetz Custom Technologies, and will use the efficiencies of lightweight composite construction and waterjets linked to twin V-16 engines to attain speeds over 40 knots. Below are accommodations for eight in four staterooms, each with ensuite head. Pilothouse and salon are laid out in the European style, with the galley behind the helm and a large companion settee and table. Beneath the raised afterdeck is a dinghy garage capable of storing an 11 foot dinghy. The styling is a change from Hunt's familiar modern classic, and shows a distinct European influence, with its reverse sheer and low-profile flybridge. As with all the previous Hunt/Goetz collaborations, this promises to be an exciting project, resulting in a yacht of extraordinary performance and appeal.
